Clean code, clean logs: tune your pattern (6/10)

Logging pattern is a wonderful tool, that transparently adds meaningful context to every logging statement you make. But you must consider very carefully which information to include in your pattern. For example, logging date when your logs roll every hour is pointless as the date is already included in the log file name. On the contrary, without logging thread name you would be unable to track any process using logs when two threads work concurrently – the logs will overlap. This might be fine in single-threaded applications – that are almost dead nowadays.

From my experience, ideal logging pattern should include (of course except the logged message itself): current time (without date, milliseconds precision), logging level (if you pay attention to it), name of the thread, simple logger name (not fully qualified) and the message. In Logback it is something like:

<appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
<encoder>
<pattern>%d{HH:mm:ss.SSS} %-5level [%thread][%logger{0}] %m%n</pattern>
</encoder>
</appender>



You should never include file name, class name and line number, although it’s very tempting. I have even seen empty log statements issued from the code:

log.info("");


because the programmer assumed that the line number will be a part of the logging pattern and he knew that "If empty logging message appears in 67th line of the file (in authenticate() method), it means that the user is authenticated". Besides, logging class name, method name and/or line number has a serious performance impact. I have prepared some simple benchmark with the following configuration:

<appender name="CLASS_INFO" class="ch.qos.logback.core.OutputStreamAppender">
<encoder>
<pattern>%d{HH:mm:ss.SSS} %-5level [%thread][%class{0}.%method\(\):%line][%logger{0}] %m%n</pattern>
</encoder>
<outputStream class="org.apache.commons.io.output.NullOutputStream"/>
</appender>
<appender name="NO_CLASS_INFO" class="ch.qos.logback.core.OutputStreamAppender">
<encoder>
<pattern>%d{HH:mm:ss.SSS} %-5level [%thread][LoggerTest.testClassInfo\(\):30][%logger{0}] %m%n</pattern>
</encoder>
<outputStream class="org.apache.commons.io.output.NullOutputStream"/>
</appender>


NullOutputStream is used to eliminate I/O overhead during the test. The following micro benchmark issues 1,5 million logging statements to CLASS_INFO and 30 million statements to NO_CLASS_INFO logger. The latter one places some static text instead of dynamically generated class information. First 1/3 of iterations were discarded to allow JVM warm-up.

import org.junit.Test;
import org.perf4j.StopWatch;
import org.perf4j.slf4j.Slf4JStopWatch;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class LoggerTest {

private static final Logger log = LoggerFactory.getLogger(LoggerTest.class);
private static final Logger classInfoLog = LoggerFactory.getLogger("CLASS_INFO");
private static final Logger noClassInfoLog = LoggerFactory.getLogger("NO_CLASS_INFO");

private static final int REPETITIONS = 15;
private static final int COUNT = 100000;

@Test
public void testClassInfo() throws Exception {
for (int test = 0; test < REPETITIONS; ++test)
testClassInfo(COUNT);
}

private void testClassInfo(final int count) {
StopWatch watch = new Slf4JStopWatch("Class info");
for (int i = 0; i < count; ++i)
classInfoLog.info("Example message");
printResults(count, watch);
}

@Test
public void testNoClassInfo() throws Exception {
for (int test = 0; test < REPETITIONS; ++test)
testNoClassInfo(COUNT * 20);
}

private void testNoClassInfo(final int count) {
StopWatch watch = new Slf4JStopWatch("No class info");
for (int i = 0; i < count; ++i)
noClassInfoLog.info("Example message");
printResults(count, watch);
}

private void printResults(int count, StopWatch watch) {
log.info("Test {} took {}ms (avg. {} ns/log)", new Object[]{
watch.getTag(),
watch.getElapsedTime(),
watch.getElapsedTime() * 1000 * 1000 / count});
}

}

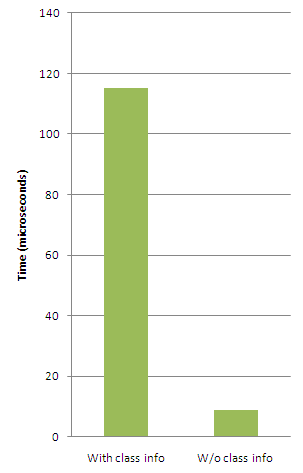

As it turned out, on my computer the logger that produces class information reflectively worked 13 times slower (115 vs. 8.8 microseconds per logging statement, see chart below). Being a Java developer suggests that 100 microseconds is acceptable, but this also means more than 1% of the server time is wasted when logging , let’s say, 100 statements per second. Is it worth it?



Somewhat more advanced feature of logging frameworks is Mapped Diagnostic Context. MDC is simply a map managed on a thread-local basis. You can put any key-value pair in this map and since then every logging statement issued from this thread is going to have this value attached as part of the pattern. I need some more complex, multi threaded example to show you the benefits of this utility, so please be so kind and wait for my next articles.


Comments

  1. Hi!

    What do you think about using MDC in filter to get logs prefixed by e.g. user login or session id.

    I can always easily grep logs and get user's history of application usage.

    ReplyDelete
  2. Your example is probably the most common use case of MDC. I implemented such a behavior in few application and it seems to be very helpful.

    Logback brings even more sophisticated and unique solution called SiftingAppender that allows to dynamically create different appenders (think: log files) per each MDC value (think: separate file for each user, session or thread). This topic is very interesting and I will definitely write about it some day.

    ReplyDelete
  3. I think that during development including the class name really helps, especially in large projects. Makes debugging faster.

    Possibly in production, due to performance reasons it a good idea to disable it. But even here the context could turn out useful when fixing bugs by looking at the logs.

    ReplyDelete
